AvailableTRL-6Proprietary

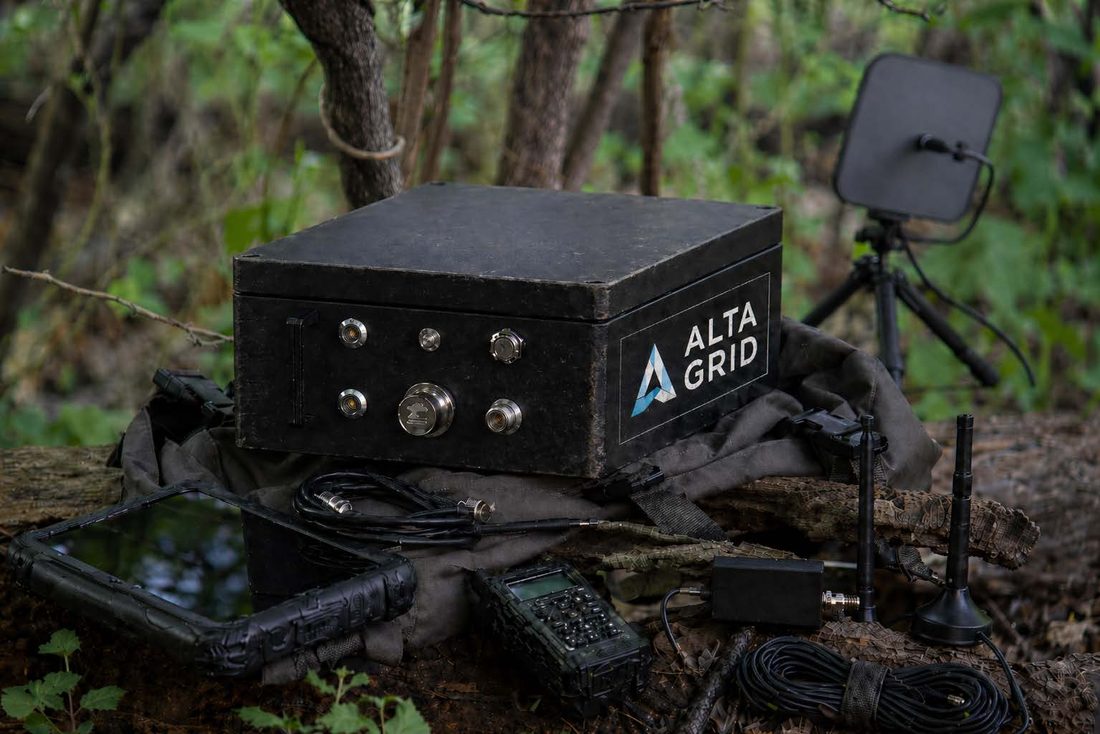

RAGNARÖK
Rugged SIGINT/EW collection and survey system
Low-SWaP signals intelligence system engineered for extended unattended operations in austere and active combat environments. A reconfigurable architecture enables deployment across air, maritime surface and subsurface, and ground mobile platforms: crewed, uncrewed, fixed, and concealment.
Dimensions
14" x 9.1" x 4.6"
Weight
9.6 lbs
Form factor
Reconfigurable enclosures for platform / concealment
Software-Defined Radio
- Spectrum coverage: 100 kHz to 6 GHz
- Instantaneous bandwidth: 27 MHz IBW
Compute Platform
- Server-grade CPU for advanced Digital Signal Processing (DSP)
- Neural-network / machine-learning-capable GPU
GNSS Receiver
- GPS, GLONASS, BeiDou, Galileo, SBAS, QZSS
- Geo-fence operations: record only within a user-defined polygon
- Optional TDOA-capable receiver
- Metadata tagged to all recordings
Software Suite
- MIDGARD signals identification and analysis suite
- ALTA-INTEL AI signal identification
- GOTS / COTS / open-source SIGINT software compatible
- GNU Radio compatible architecture
- Tactical Awareness Kit (TAK / ATAK) integration
Storage
- 30+ hours continuous wideband capture
- Raw I/Q data preservation
GPIO Interface
- External device / sensor control capability
- AoA / DF array integration
Physical and Data Security
- Engineered toward NSA CSfC Data-at-Rest (DAR) and Data-in-Transit (DIT) encryption requirements
- Tamper-resistant physical construction
- Tamper-indicating security features
- Over-the-air encrypted drive unlock
- No encryption keys resident on system
Networking
- Compatible with any IP network / VPN
- SATCOM: Starlink, Inmarsat
- MANET / mesh: Persistent Systems Wave Relay, Trellisware, Silvus StreamCaster
- Mobile hotspot connectivity worldwide
Inquiries and demonstrations
Contact us to arrange a briefing or live demonstration of RAGNARÖK.
Request a demonstration
